Starting Platform Aqueas – AQ-SP01

Starting Platform Aqueas – AQ-SP01

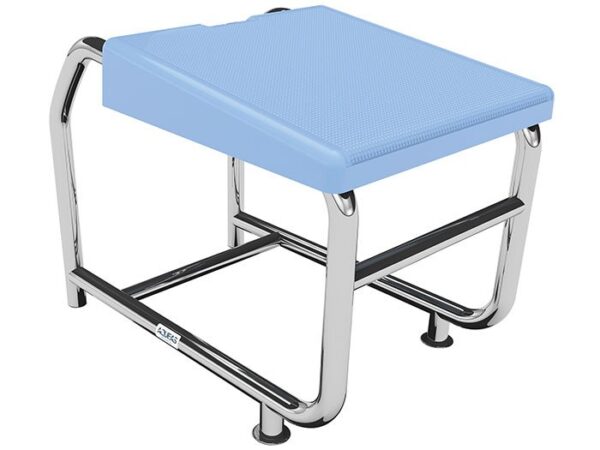

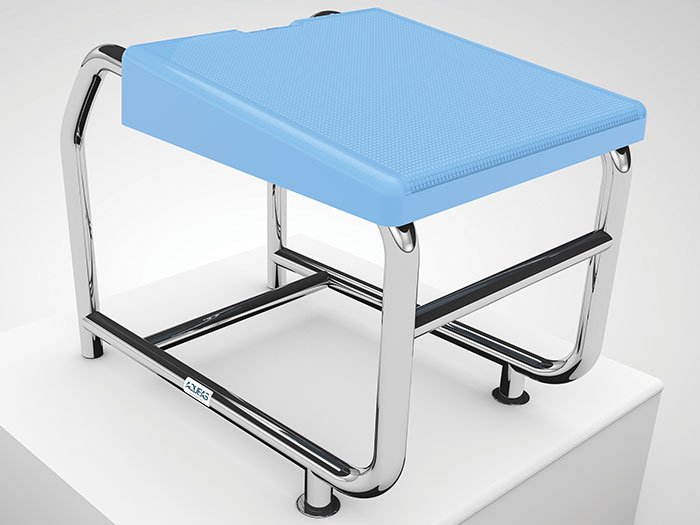

Specially designed AQUEAS AQ-SP01 Starting Platform is suitable for wide coping between water level and 250mm above water level.

It is made of 316 mirrors polished heavy duty stainless steel 38 mmø with a 500 mm x 500 mm non-slip pattern blue fiberglass top. Specially featured with a backstroke bar at the front.

Fixing options:

  1. Fixed – Fixed using 100 mm dia. leg flanges
  2. Removable with standard legs – 2 x AQ-PS01 sockets on the front legs and cap ends on the rear legs

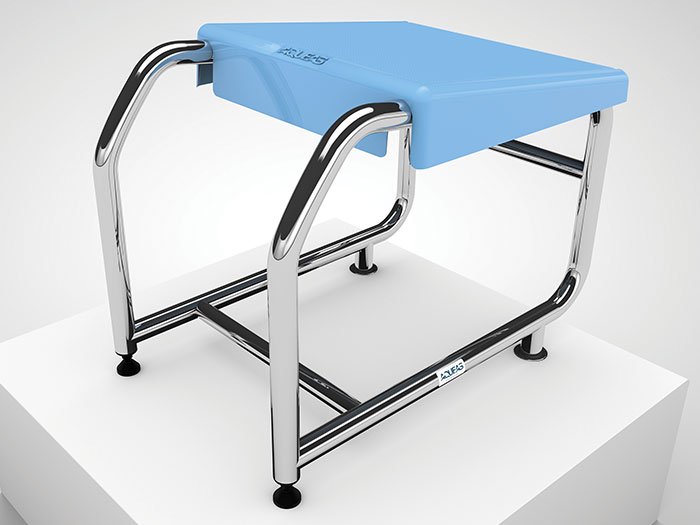

  3. Removable with articulated rear legs – 2 x AQ-PS01 sockets on the front legs and articulated feet on the rear legs

The (C) Removable is a popular choice as the articulated feet compensate for an uneven surface. Removable (B) & (C) blocks can be stored away when not required.

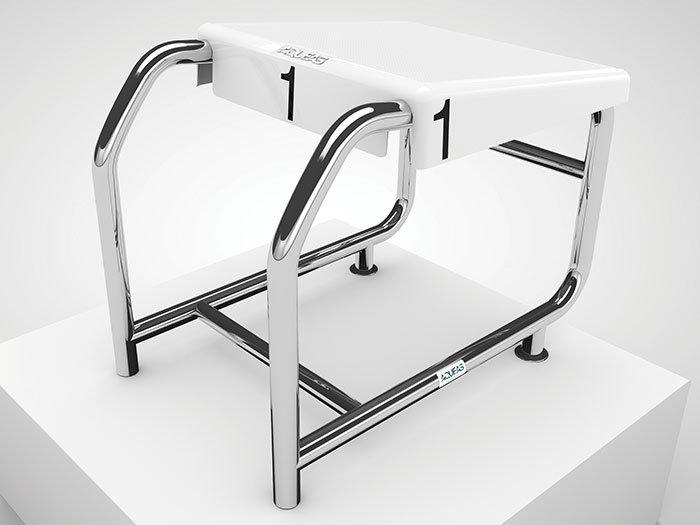

These platforms can be ordered with white tops by request at the time of placing an order at no extra cost though supplied with blue tops as standard.

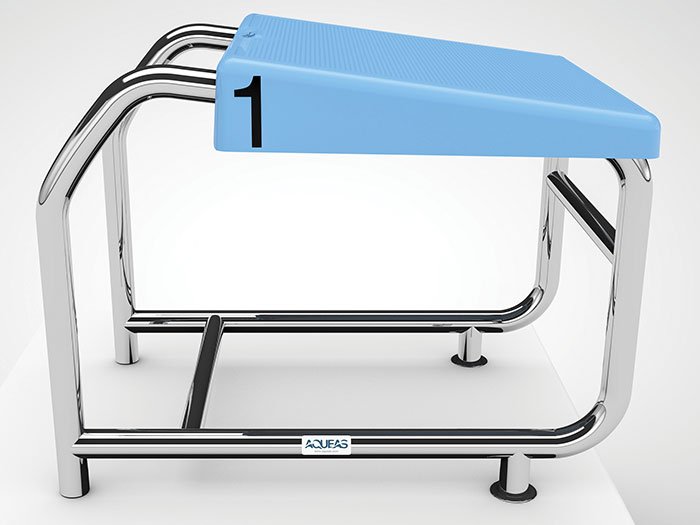

Platforms are supplied without lane numbers. If lane numbers are required, this is an option and must be requested at the time of placing an order at additional cost.

Brand: AQUEAS
Frame: Heavy Duty Stainless Steel 38 mmø
Top: Fibreglass 500 mm x 500 mm
Finish: Mirror Polished
Height from coping: 500 mm

Information

Which one is right for me – The starting platform must physically fit the coping / concourse. There is the coping height, coping width and water depth issues to address. Regulatory guidelines for competition and recreational swimming may also need to be observed. We can help choose the platform right for you. We need coping width, coping height from the concourse, coping height from water level and water depth before we can recommend a platform that will suit your requirements.​

Delivery Time – This item is usually 4-6 weeks.

    Select Size

    AQUEAS Flanged AQ-SP01-A N/A
    AQUEAS Socket/Std Leg AQ-SP01-B N/A
    AQUEAS Socket/Adj Leg AQ-SP01-C N/A
    Numbers AQ-SPN002 4 per unit N/A
    Brand: Aqueas,
    Type: Starting Platforms,
    Availability:

    Out of stock
